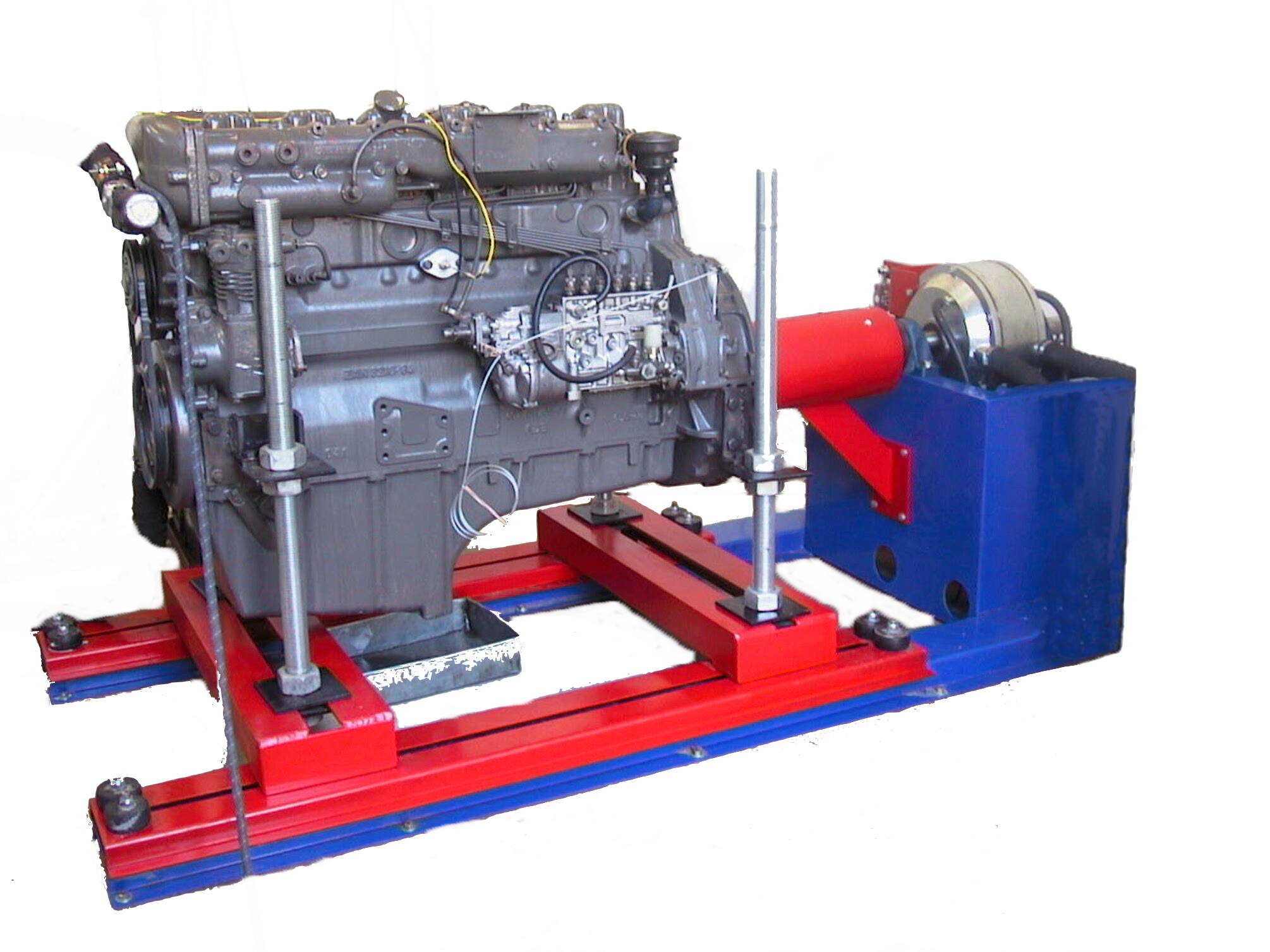

Basic model engine dynamometer Model DE-LDV1General Trucks & Busses 350kW, 1900NM, 5000rpm

This dyno is ideal for testing the average heavy vehicle diesel engines such as trucks and busses with power ranging from 80 to 500Hp.

It makes it an essential tool for the engine remanufacturing company.

The ideal is to test the engine properly on the dyno before delivery.  Therefore, you and the end user have confidence that the engine is properly run-in and reliable.  Subsequint engine failures can thus be prohibited and the reason for this failure might be indicative of faulty installtion or useage.

With up to 64 different types of sensors, the tuner can evaluate almost any conceivable parameter

Additional information

Specifications

Max Power: 500Hp (350kW) @2200rpm
Max RPM: 5500
Max Torque: 1900Nm @2200rpm

Dynamometer Control Unit – Waterbrake Unit
o Power requirement : 220 V 2A
o Air supply – regulated : 5 Bar
o Speed stability : ±5 rpm
o Load stability : ±0,1 %
o Temperature sensor accuracy : 0,5 %
o Pressure sensor accuracy : 0,5 %

From: R271 528,00

Add to Quote

Related Products

Description

This dyno is ideal for testing the average heavy vehicle diesel engines such as trucks and busses with power ranging from 80 to 500Hp.

It makes it an essential tool for the engine remanufacturing company.

The ideal is to test the engine properly on the dyno before delivery.  Therefore, you and the end user have confidence that the engine is properly run-in and reliable.  Subsequint engine failures can thus be prohibited and the reason for this failure might be indicative of faulty installtion or useage.

With up to 64 different types of sensors, the tuner can evaluate almost any conceivable parameter

Additional information

Specifications

Max Power: 500Hp (350kW) @2200rpm
Max RPM: 5500
Max Torque: 1900Nm @2200rpm

Dynamometer Control Unit – Waterbrake Unit
o Power requirement : 220 V 2A
o Air supply – regulated : 5 Bar
o Speed stability : ±5 rpm
o Load stability : ±0,1 %
o Temperature sensor accuracy : 0,5 %
o Pressure sensor accuracy : 0,5 %
